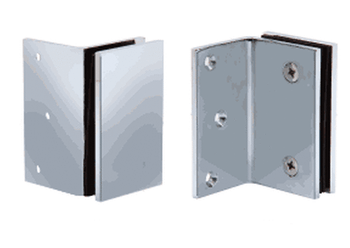

Polished Chrome Left Hand "Sleeve Over" Wall Mount Glass Clamp
- 0.00 KGS
- Calculated at Checkout
Catalog Number: S0GC37LCH
For 5/16" to 1/2" (8 to 12 mm) Thick Glass
Use Monolithic Tempered Glass
Secured to Glass with Set Screws
Assists with Shear Forces
Holds Glass Panels in Position While Sealant Cures
Left-Handed as Viewed from Outside Shower
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
No Glass Fabrication Required
NOTE: Clamps tighten using nylon tipped Allen screws. These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales for more details.
