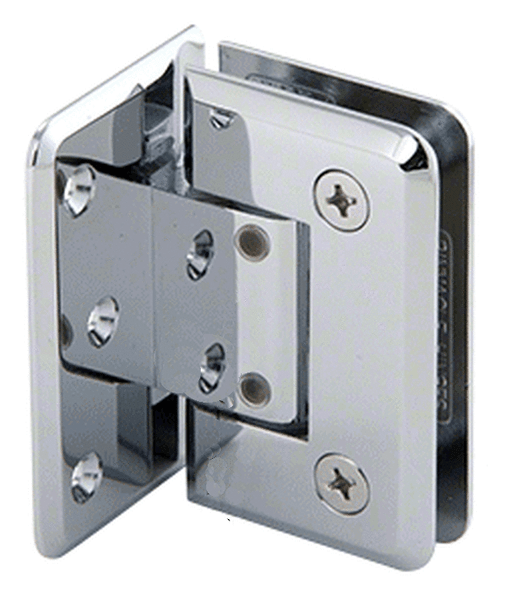

Adjustable Vienna 344 Offset Wall Mount Hinge

(No reviews yet) Write a Review
SKU:
V1E344
Weight:
0.90 KGS
Shipping:
Calculated at Checkout
  • Adjustable Vienna 344 Offset Wall Mount Hinge
  • Adjustable Vienna 344 Offset Wall Mount Hinge
£75.00 - £117.00

Description

Catalogue Number: V1E344 (An adjustable close V1E044)

Glass Fabrication: Cut-Out Required in Glass, See Template in product images.

Includes: Gaskets, Screws, and Glass Fabrication Dimensions.

Backplate: Offset back-plate, Wall to Glass Hinge.

Deduction: 8 mm from glass width to allow hinge and achieve same coverage / width.

Two hinges: will hold up to 50 kg with a maximum door width of 914 mm.

Three hinges: will hold up to 63 kg with a maximum door width of 914 mm.

Glass Thickness: 10 mm to 12 mm Toughened Safety Glass.

Construction: Solid brass with all moving parts (pins and springs) in stainless steel.

Hinge Swings: 90 Degree in and 90 Degree Out at factory set position.

Closing Type: Self-Centring when within 15 Degree of closed position at factory set position.

Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down.

The Vienna Offset Wall Mount Plate Adjustable Hinge adjusts to accommodate desired angles up to 90 degrees. Simply loosen the Allen Screws on the rear of the hinge, position the door to the desired closing position, then re-tighten the Allen Screws. For best results, use with a strike jamb and position the door to push against the jamb for a snug close. Offset Wall Mount Plate leaves clean site line.
