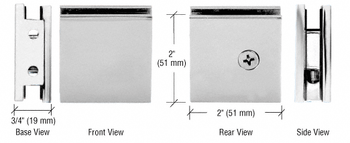

Brass Square Style Notch-in-Glass Fixed Panel U-Clamp

Catalog Number: SGCU1BR
Finish: BRASS

For 3/8" to 1/2" (10 to 12 mm) Glass
Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
Solid Brass
A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
Glass Fabrication: Notch Required in Panel

CRL Square Wall Mount Clamp (Notch-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 1/16" (2 mm). Clear silicone can be used to provide a clean, water-tight seal.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 Requires Notch; SCU4, SGC037, and SGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets
