DUC516BA Dry Glaze U Channel for 8mm Glass - 2.41 m

SKU:
DUC516
MPN:
DUC516BA
Weight:
0.90 KGS
Shipping:
Free Shipping
£50.00 - £58.00

Description

DUC516BA U Channel for installing 8mm Shower glass panels without the need for silicon.

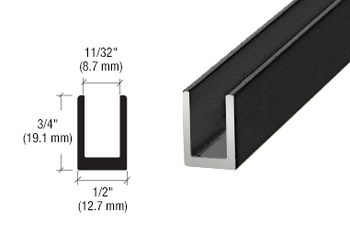

  • Catalog Number: DUC516
  • Glass Entrance: 8.7mm
  • Visible Height: 19.1mm
  • Width: 12.7mm

For 8 mm Shower Glass

Clear Vinyl's Secure Glass in Channel and Eliminate the Need for Messy Silicone
Recess in Bottom Channel Hides Caulk Line



Dry Glaze U-Channel offers the installer many benefits. It eliminates the need for messy silicone between the glass and metal, dramatically reducing installation time. If the glass is ever scratched or damaged it can be removed without the need to cut out the sealant.

The extruded aluminum channel is wrapped in a protective poly sleeve with two pieces of clear vinyl to secure 5/16" (8 mm) thick glass. The "Flexible" Vinyl goes on the interior of the shower, while the "Rigid Leg" Vinyl "rolls in" on the exterior side.

NOTE: Not designed for "Lift and Drop" applications.

SPECIFICATIONS:
Materials: 6463-T5 Extruded Aluminum, Rigid Clear Vinyl, and Flexible Clear Vinyl
Includes: 2.41 m U-Channel, Rigid Vinyl, Flexible Vinyl
