Glass Components

CRL SDCR38BA /BR / BN Low profile U-channel for 10mm Glass

SKU:
SDCR38BA
MPN:
SDCR38BA
Weight:
0.40 KGS
Width:
241.00 (cm)
Height:
0.95 (cm)
Depth:
1.02 (cm)
Minimum Purchase:
1 unit
Shipping:
Free Shipping
  • SDCR38BA Uchannel low profile for shower glass
  • U Channel 10mm U Channel
  • U Channel 10mm U Channel
£45.00

All ( in stock) components delivery 1-2 working days
All glass items deliver 7-10 working days - Check here for delivery areas we cover

Description

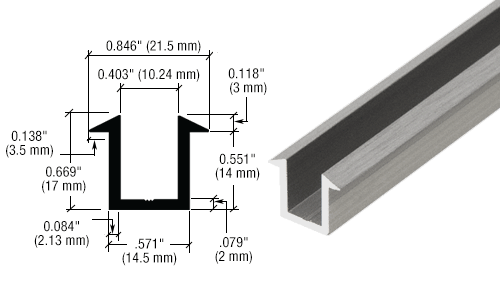

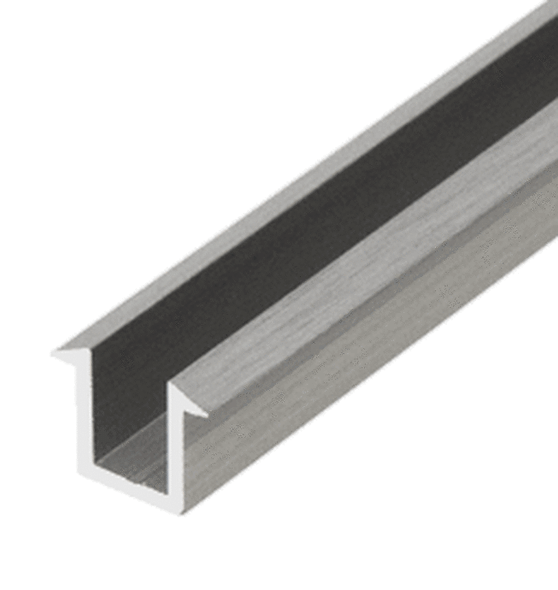

 Catalogue Number: SDCR38XX (XX = replace with colour code), U Channel for 10mm glass. Suitable for 8mm with more silicone applied.

 Recommended Deduction from glass tight size: 5mm

 Depth / height of profile wall 9.5 mm,  Stock Lengths 2.49 metre,  Thickness of Metal : 2.03 mm

 Glass is silicon-ed in place.

 U Channel is secured in place using screws or silicone. Recommend screwing in place.

 The force required to dislodge a screwed in U channel would be great compared with U Channel secured by silicone or adhesive.



CRL Clear EU 33S Shower Sealant 300ml

CRL Black EU 33S Shower Sealant 300ml

CRL White EU 33S Shower Sealant 300ml



For help with fitting please see here: https://www.shower-glass.co.uk/how-to-fit-a-shower-screen/

View AllClose

Warranty Information

2 Year Anti-Corrosion
