Prima

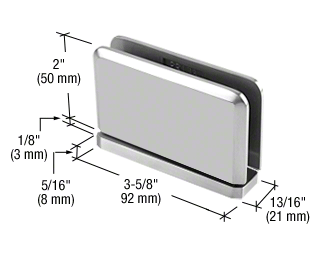

Top or Bottom Mount Prima Pivot Hinge with Attached U-Clamp - Chrome

SKU:
PPH07CH
Weight:
0.90 KGS
Shipping:
Calculated at Checkout
£110.00

All ( in stock) components delivery 1-2 working days
All glass items deliver 7-10 working days - Check here for delivery areas we cover

Description

Catalog Number: PPH07CH

Finish: Chrome

Top or Bottom Mount with Attached U-Clamp (Provides Alternative to Using Traditional Header Systems) Attached U-Clamp has Same Design and Profile as Hinge This hinge series is patented (Patent Number 5297313) - CE Certification Can Also Be Mounted at Bottom of Door and Adjacent Panel for Symmetry 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass Stocked in Several Popular Finishes, with Custom Finishes Available Design and Installation Criteria Available - Click the "How To Do It" Icon Above Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 Degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 Degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our new PPH06 Model is only compatible with our new EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System. Optional 5 Degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 Degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 Degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 Degree Hinge models are available from stock. Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).

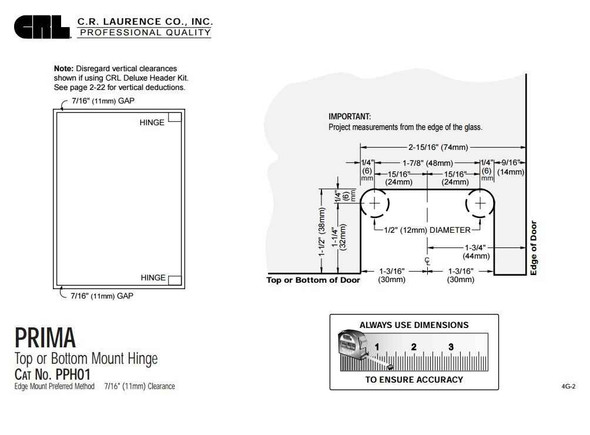

SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header. Construction: Solid Brass Hinge Swings: Full Rotation Closing Type: Self-Centering when within 15 Degree of closed position. Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp). Includes: Gaskets, Screws, and Glass Fabrication Dimensions This hinge series is patented (Patent Number 5297313).

View AllClose

Warranty Information

3 year warranty
