Prima
Adjustable Prima Series Hinge Chrome
- SKU:
- PPH301CH
- UPC:
- Weight:
- 0.50 KGS
- Shipping:
- Calculated at Checkout
Description
Catalog Number: PPH301CH
Finish: Chrome
Three Year Warranty
Not Compatible with Header Systems Self-Centering When within 15 Degree of Closed Position
The New Adjustable Prima Series makes mounting top and bottom hinges easier than ever.
Adjusting up to 5 Degree both in and out to the desired door alignment can be done after the initial installation. The small Allen screws on the front and rear of the base plate are loosened using the provided 3 mm Allen Wrench, allowing positioning of the door to the desired closing position. Tightening the Allen screws ensures that the door closes to the same position every time. NOTE: Not compatible with Header Systems. Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: Full Rotation Closing Type: Self-Centering when within 15 Degree of closed position. Cut-Out Required Includes: Gaskets, Screws, 3 mm Allen Wrench, and Glass Fabrication Dimensions This hinge series is patented (Patent Number 5297313).
Related Products

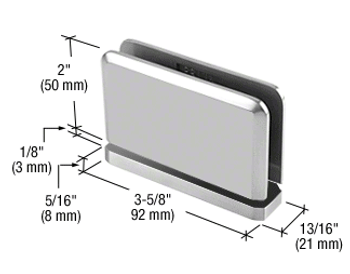

Prima 01 Series Top or Bottom Mount Hinge
Prima
- SKU:
- PPH01
- Weight:
- 0.90 KGS

Prima 06 Series EZ-Adjust Top Mount Hinge - Chrome
Prima
- SKU:
- PPH06CH
- Weight:
- 0.90 KGS

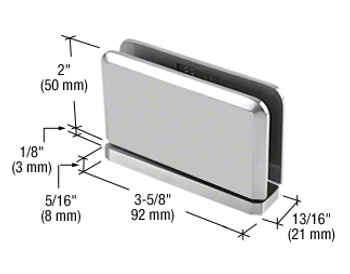

Prima #1 Pin 01 Series Top or Bottom Mount Hinge - Chrome
